Generally the model A use Lihuiyu mother board and laserdraw/coredraw software while model B use LaserCAD/AUTOCAD/RUIDA and RDworks engraving software. It makes DSP technology and USB flash disk read and edit file.

Features

1. 3.5 inch Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.

2. It adopts DSP high speed processor which supports USDB 2.0 interface and U flash memory disk read and write file. It is good for mass engraving or cutting.

3.It has internal memory makes it can separate from PC and independently set parameters.

4. It has stable high speed cutting and soft velocity variations performance which realizes no sawtooth shape during high speed cutting.

5. Network management makes it communicate with PC easy, security and relible.

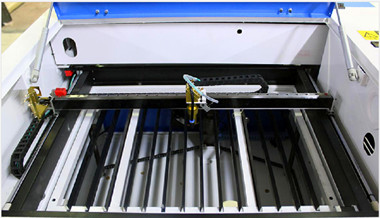

6. It has auto lifting platform which is good for different material engraving. The upgrade industrial CO2 laser cutting head has laser adjustment screw. It can get more accuracy laser optics path and engraving effect.

7. It also has automatic blowing, auto focus, pedal switch and security protection function. Also soft/hard coordinate limit protection is applied.

8. It has power off continued carving, power failure recovery, processing time prediction, intelligent typesetting and cost budget function.

9. It supports two laser control function. Each laser power can be adjusted individually. Also two laser head reciprocal cutting is applied at this machine.

10.Small circle cutting speed can be flexibly set and improve small circle cutting effect.

11.Hierarchy data output function is applied. Output power, output speed,laser mode(engraving,cutting or slope engraving at tach hierarchy and these data can be saved automatically.

12. Real-time status or track of engraving or cutting and lock display function are applied on this machine.

13. Gallery has 2000 documents, laser anti-counterfeit fingerprints and thousands of fronts.

Specification:

1. Laser power:50W,60W,80W or 100W

2. Max engraving area:600x400mm

Welcome to Jinan Ruby Laser Technology Co., Ltd(home page:www.rubylasercutting.com). Seven years ago, it once worked as a premier provider to offer CO2 laser tube,CO2 power supply, cutting head, YAG pulsed or CW power supply to laser machine factories in China and other countries. From then on the company devotes its time and energy to laser engraving, laser cutting or laser marking. Up to now, it has rich experience to offer high quality products and service to factories or machine users.

Owing to strong demand of laser processing around the word recently, it starts to design, manufacture and sell its own brand laser machine. Product range mainly is small and medium-sized CO2 or fiber cutting machine. As skilled laser integrator, Rubylasertech uses high quality laser spares(Eg,fiber laser,scanning galvanometer,motor,laser cutting system) to build machine to make sure it has excellent cutting performance and good user experience. Some spares are imported from Germany,USA and Japan.

Besides standard configuration, the company can also offer special configuration machine on client demand. Design flexibility is our biggest feature. With advanced technology, qualified products and excellent after sales service, its Rubylasertech’s wish to let worldwide client enjoy convenience and experience brought by its product.
